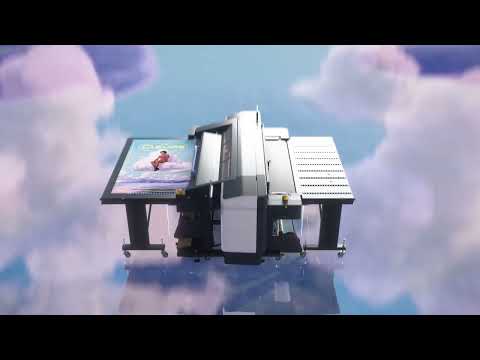

The HP Latex R530 is a hybrid large format printer that combines a flatbed rigid printing table (1,600 mm x 1,500 mm, expandable to 6 m with extension tables) with full 64-inch roll-to-roll capability. It prints directly on rigid substrates up to 50.8 mm thick — including foamboard, acrylic, aluminium composite panel, polycarbonate, glass, wood, and ceramic — using water-based HP Latex 873 inks in 3-litre cartridges. It is the only compact hybrid printer in its class that achieves this without UV-curable inks, carrying UL ECOLOGO, UL GREENGUARD Gold, EPEAT, AgBB, and French VOC A+ certifications. In roll-to-roll mode, it handles standard vinyl, banner, and vehicle wrap media on rolls up to 55 kg. Sold and serviced in South Africa by Graficomp, an HP Amplify Commercial Specialist and certified HP ASDP service partner.
HP Latex R530 printing directly on rigid substrates — water-based HP Latex 873 inks on boards up to 50.8 mm thick, no UV lamp required
The R530 is not a faster roll-to-roll printer. It is a different kind of machine: a hybrid that runs flatbed rigid production and roll-to-roll flexible production from the same ink platform.
In flatbed mode, rigid boards up to 1.6 m x 1.5 m are loaded onto the vacuum belt table and printed directly — no transfer, no laminate carrier, no UV lamp. In roll-to-roll mode, the same machine handles standard vinyl, banner, and vehicle wrap media at 64-inch width, producing flexible output ready for cutting and application.
For a print operation currently running a roll-to-roll printer and sending rigid jobs to a trade supplier, the R530 eliminates that dependency in a single machine footprint. For a buyer whose production mix is primarily rigid with some flexible work, it removes the need for two separate machines on the floor.
The R530 prints directly on rigid boards with no UV lamp, no outgassing, and no ventilation requirement. The substrate list below is complete and specific — buyers researching a particular board type will find the answer here, not in a generic statement.
UV-curable inks contaminate fibre-based substrates and render them non-recyclable. Foamboard, corrugated, and cardboard printed with UV inks cannot re-enter the paper recycling stream. Fibre-based substrates printed with HP Latex 873 water-based inks remain recyclable. For retail and event display operations managing a sustainability mandate from their own clients, the R530 is the only rigid printing platform that supports end-of-life recyclability on paper-based board. No UV flatbed page in the South African market currently makes this argument.
The R530's rigid throughput is slower than dedicated UV flatbed alternatives at comparable price points. This is stated here clearly because buyers who discover it post-purchase feel misled. Buyers who are told it pre-purchase and still choose the R530 are the right buyers.
| Print Mode | Speed on Rigid | Pass Count | Typical Use |
|---|---|---|---|
| Standard RECOMMENDED | 15.5 m²/hr | 12-pass | Production-quality rigid output; retail display, signage |
| Draft | 31 m²/hr | 4-pass | Proofing, short-run, less critical output |
Roll-to-roll is the R530's second complete production mode. For buyers arriving from a roll-to-roll background, this section confirms that adding rigid capability does not compromise the flexible workflow. For buyers arriving from a UV flatbed background, it explains what they gain by choosing the R530 instead.
In roll-to-roll mode, the R530 prints on cast vinyl and vehicle wrap films. HP Latex 873 inks cure flexible and conform to curves and compound surfaces when applied with heat. UV-curable inks are rigid after curing and are not suitable for vehicle wrap applications without specific flexible UV formulations. The R530 is the only hybrid printer in its class that handles both vehicle wrap film and rigid ACM panels on the same ink platform.
Real-world production results from HP Latex R530 operators.
300-panel jobs that used to take two weeks — print, laminate, cut, scramble — now take three to four days printing direct. We eliminated the laminating step entirely on rigid panels.
Quickly changing from roll-to-roll to rigid substrate is a massive benefit for turnaround times. While the main machine is busy, the R530 handles different media and fast one-off rigid jobs.
We can print multiple panels simultaneously in different formats. Before the R530, rigid plastics required transparent adhesive plus white backing laminate and real manual scramble on large runs.
Water-based inks, low odour — better working environment and better for our clients' environments. We invested for the ecological side and to grow turnover with high-volume work without subcontracting.
The R530 doubled our capacity. Single-phase power — two 16-amp plugs, same as the 830W — less electricity for more production. It handles extra capacity for fast-turnaround rigid and roll work simultaneously.
New product categories we never had before: construction signage, interior signage, lino flooring prints, acrylic sandwich panels. Direct print on board opened entire market segments we previously subcontracted.
300-panel jobs that used to take two weeks — print, laminate, cut, scramble — now take three to four days printing direct. We eliminated the laminating step entirely on rigid panels.
Quickly changing from roll-to-roll to rigid substrate is a massive benefit for turnaround times. While the main machine is busy, the R530 handles different media and fast one-off rigid jobs.
Water-based inks, low odour — better working environment and better for our clients' environments. We invested for the ecological side and to grow turnover with high-volume work without subcontracting.
This comparison exists because an informed buyer who chooses the R530 for the right reasons is a better outcome than a sale made on incomplete information. Graficomp does not sell UV flatbed systems. That makes it easier to tell you the truth.
| Specification | HP Latex R530 | UV Flatbed (representative) |
|---|---|---|
| Ink technology | Water-based HP Latex 873 | UV-curable |
| Rigid substrate capability | Yes — up to 50.8 mm thick | Yes — typically up to 100 mm+ |
| Roll-to-roll capability | Yes — full 64-inch, vehicle wrap film | No (flatbed-only models); limited on hybrids |
| Standard speed on rigid | 15.5 m²/hr (12-pass standard) | 25–42 m²/hr (varies by model) |
| Vehicle wrap capability | Yes — latex inks remain flexible after cure | No (UV inks are rigid after cure) |
| Ventilation required | No — water-based, no HAPs | Recommended for UV fumes |
| Fibre substrate recyclability | Yes — latex inks do not contaminate fibre | No — UV ink contaminates fibre recycling |
| Environmental certifications | UL ECOLOGO, UL GREENGUARD Gold, EPEAT, AgBB, French VOC A+ | Limited; GREENGUARD on some ink sets |
| Power requirements | Single-phase — no electrical upgrade required | Single or three-phase (model dependent) |
| White ink | Yes (R530W variant — automatic recirculation) | Yes (optional on most models) |
| Outdoor durability (laminated) | 7 years on laminated 3M cast vinyl | High scratch resistance; UV outdoor rating varies |
Your production mix includes both rigid and flexible work. Water-based ink certification matters to your clients or your operating environment. You need vehicle wrap capability alongside rigid board printing from one machine. You want to bring rigid work in-house without a UV flatbed infrastructure investment (ventilation, three-phase power, separate machine).
Your production is predominantly rigid at sustained volumes above 20 m²/hr. You require a bed larger than 1.6 m x 1.5 m for oversized panels. Maximum rigid throughput is the primary decision criterion and flexible media is not part of your workflow. Graficomp does not sell UV flatbed systems and will refer you to the appropriate supplier if that is the better match.
Spec sheets show headline speeds. These are the advantages that determine your actual cost per square metre over three years of production.
Water-based HP Latex inks cost less per ml than UV-curable alternatives. For operations printing consistent volume, the ink cost difference over machine lifetime is a material financial advantage that compounds across every rigid and roll job.
Operations running a roll-to-roll printer and outsourcing rigid jobs pay a trade margin on every board. The R530 internalises that margin. XL Print reported eliminating the laminating step entirely on rigid panels — saving both material cost and production time per job.
HP 873 printheads are user-replaceable in under 10 minutes with no engineer required. No waiting days for a technician. No production downtime from a head strike. Order the head, install it, back in production the same day.
HP ships parts by air freight exclusively — no sea freight. If a part is not already in South Africa, HP will fly it in within three business days. Most units and consumables are held in local SA stock. HP delivers equipment free to any location in South Africa.
The R530 runs on standard single-phase power — two 16-amp plugs. UV flatbed alternatives often require three-phase electrical installation, adding infrastructure cost before the machine is operational. The R530 can be installed in most commercial premises without electrical upgrade.
HP Latex prints exit the machine dry and ready for lamination, cutting, and delivery. No outgassing delay. No overnight wait before finishing. For operations with fast-turnaround clients, this is a direct throughput advantage over eco-solvent alternatives.
Source: HP Latex R530 / R530W Product Datasheet. Metric primary; imperial in brackets where available. Verify current specification with Graficomp before procurement.
| Specification | Value |
|---|---|
| Print technology | HP Thermal Inkjet with HP High Control Belt System |
| Ink system | Water-based HP Latex 873 — 3-litre cartridges |
| Colour configuration | CMYK + Light Magenta + Light Cyan + White (7 channels; base R530 is CMYK + Lm + Lc) |
| Max rigid substrate dimensions | 1,600 mm x 1,500 mm — expandable to 6 m with extension tables |
| Max substrate thickness | 50.8 mm (2 inches) |
| Max board weight | 68 kg |
| Max roll width | 1,630 mm (64 inches) |
| Max roll weight | 55 kg |
| Standard speed — rigid (12-pass) | 15.5 m²/hr |
| Draft speed — rigid (4-pass) | 31 m²/hr |
| Standard speed — roll (8-pass) | ~20 m²/hr |
| Draft speed — roll (4-pass) | 31 m²/hr |
| White ink — 5-layer speed (R530W) | 1.4 m²/hr |
| Max print resolution | 1,200 x 600 dpi |
| Printheads | HP 873 (user-replaceable) |
| Spectrophotometer | Not included — third-party compatible |
| Power requirements | Single-phase — two 16-amp circuits; no three-phase installation required |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| RIP software included | HP SAi Flexi RIP Basic (Windows only) |
| Environmental certifications | UL GREENGUARD Gold · UL ECOLOGO · EPEAT · AgBB · French VOC A+ |
| Outdoor durability (laminated) | 7 years on laminated 3M cast vinyl (3M MCS Warranty) |
| Warranty | 1-year limited hardware warranty |
Graficomp is not a box-mover. Every R530 purchase includes on-site commissioning by a certified HP engineer and operator training. 40 to 50 years of combined engineering experience on HP DesignJet and Latex ranges. HP ASDP Certified Service Centre for in-warranty and out-of-warranty support.
HP Amplify Partner Program
HP Amplify is HP's global partner programme for authorised resellers and service organisations. Specialist status is not automatic — it requires demonstrated technical competency, customer satisfaction metrics, and a minimum volume of certified deployments. Graficomp holds Commercial Specialist designations across two distinct solution areas within the Large Format portfolio, as well as Synergy Commercial Partner status.
When you buy an HP Latex R530 through Graficomp, you are buying through a partner that HP recognises as qualified to deliver the full solution: hardware, installation, training, and ongoing service. That is what HP Amplify Specialist status means in practice.
HP delivers equipment free to any location in South Africa, including outlying areas where freight costs from other suppliers can run into thousands of rand. Graficomp's engineers travel to site for installation across all regions.
| Buyer Condition | Recommended Model |
|---|---|
| Moving up from eco-solvent; moderate daily volume; no spectrophotometer required | HP Latex 630 |
| Need white ink for window graphics, backlit, or dark substrates on roll media | HP Latex 630W |
| Daily volume above 20 m²; repeat brand clients; embedded spectrophotometer required | HP Latex 730 |
| High-volume roll-to-roll operation; speed parity with eco-solvent required | HP Latex 830 |
| Need to print on rigid substrates AND roll media from one machine on water-based ink | HP Latex R530 (this page) |
| Need rigid printing with white ink on the R530 platform | HP Latex R530W (this page — W variant adds white ink) |
Each answer is written to stand alone — optimised for AI-assisted search and passage retrieval. These are the questions Graficomp's team actually receives from buyers evaluating the R530 against UV flatbed alternatives.
The R530 prints directly on paper foamboard, plastic foamboard, PVC foam, acrylic (PMMA), polycarbonate, polystyrene, aluminium composite panel (ACM), corrugated board, corrugated plastic, honeycomb board, compressed cardboard, glass, ceramic tiles, and wood panels including MDF. Maximum substrate thickness is 50.8 mm (2 inches). Maximum board weight is 68 kg. The flatbed table is 1,600 mm x 1,500 mm standard, expandable to 6 m with extension tables.
For operations running mixed rigid and flexible production, yes — the R530 handles both from one machine on water-based ink. For dedicated high-volume rigid-only production at sustained output above 20 m²/hr, a UV flatbed will be faster on rigid substrates. The R530's advantage is the combination of rigid and flexible capability, water-based certification, vehicle wrap compatibility, and single-phase power in a single compact machine. Graficomp does not sell UV flatbed systems and will refer buyers to the appropriate supplier if a dedicated UV flatbed is the better match.
Yes. In roll-to-roll mode, the R530 prints on cast vinyl, calendered vinyl, and vehicle wrap films. HP Latex 873 inks remain flexible after curing and conform to curves and compound surfaces when applied with heat. UV-curable inks are rigid after curing and are not suitable for most vehicle wrap applications without specific flexible UV formulations. The R530 is the only hybrid printer in its class that handles both vehicle wrap film and rigid ACM panels on the same ink platform.
No. The R530 operates on standard single-phase power using two 16-amp circuits. UV flatbed alternatives often require three-phase electrical installation, adding infrastructure cost before operation. The R530 can be installed in most commercial premises without electrical upgrade — a meaningful advantage for operations in older buildings or in outlying areas where three-phase infrastructure is not available.
Yes. HP Latex 873 inks are water-based and do not contaminate the fibre recycling stream. Foamboard, corrugated board, and cardboard printed on the R530 can re-enter the paper recycling stream. UV-curable inks on the same substrates render them non-recyclable. For retail and event display operations managing a sustainability mandate from their own clients, this is a verifiable environmental advantage that no UV flatbed can match.
No. The R530 does not include an embedded spectrophotometer. Third-party spectrophotometers are compatible. For buyers who require automated ICC profiling as a primary workflow requirement, the HP Latex 730 or HP Latex 830 (roll-to-roll) include embedded spectrophotometers, but they do not have rigid printing capability. The R530 is a trade-off: hybrid capability in exchange for no embedded colour profiling tool.
No. HP Latex 873 inks are water-based and contain no Hazardous Air Pollutants. No special ventilation is required for the ink chemistry. When printing on PVC-based vinyl or banner media in roll-to-roll mode, mild off-gassing can occur from the media plasticiser during curing — this is from the substrate, not the ink. UV flatbed systems typically require ventilation for UV-curable ink fumes during the curing process.
The R530W adds a white ink channel to the standard R530 configuration. White ink enables printing on transparent materials, dark substrates, metallic films, and backlit displays where a white underbase or overprint is required. The R530W uses automatic white ink recirculation to keep the ink in suspension during idle periods, reducing maintenance requirements. The white ink 5-layer print speed on the R530W is 1.4 m²/hr. Both models share the same flatbed table dimensions, roll-to-roll capability, and HP 873 ink system.
Yes. The R530 integrates with HP PrintOS for real-time production monitoring, job status, ink level tracking, and printer health data from any connected device via browser. This supports unattended overnight rigid and roll-to-roll production runs with remote visibility. HP PrintOS Production Hub premium features require an HP Professional Print Service Plus Plan.
Graficomp's team can match you to the right machine for your production mix — whether that is the R530, a roll-to-roll Latex, or a referral to a UV flatbed supplier. No pressure. Useful information whether you buy now or in 12 months.
