The HP DesignJet T830 is a 36-inch (914 mm) compact multifunction plotter with integrated scanning and copying, designed for architectural practices, engineering firms, and technical consultancies that need to print, scan, and copy A1 and A0 drawings in a single device. It prints an A1 drawing in approximately 25 seconds and scans large format originals at up to 600 dpi using an integrated CIS scanner capable of capturing originals up to 914 mm wide. The T830 uses HP 728 ink cartridges (Cyan, Magenta, Yellow, and Matte Black) and connects via Gigabit Ethernet, Wi-Fi, and USB. Its compact, foldable scanner arm and built-in wheels allow the device to be positioned flexibly without requiring dedicated equipment room space. Sold and serviced in South Africa by Graficomp, an HP Amplify Commercial Specialist and certified HP ASDP service partner.

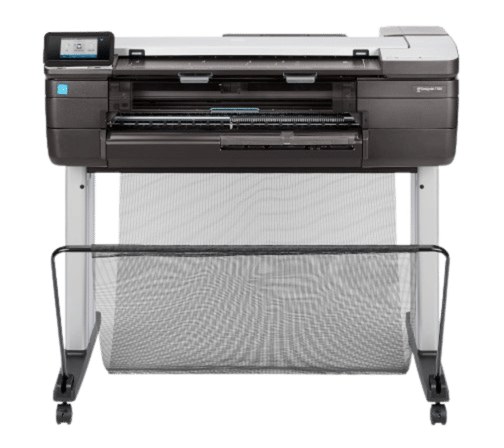

HP DesignJet T830 A1 MFP printing architectural construction drawings in a small studio environment
The T830 is for practices that need print, scan, and copy on A1 drawings without buying separate equipment or occupying additional floor space. These are the operational reasons AEC practices choose the T830 over a print-only plotter.
The T830 eliminates the need for a separate A1 scanner. Print construction drawings, then scan marked-up site surveys, as-built documentation, and annotated drawings in the same device, in the same workflow. For practices managing both document output and document input, the T830 replaces two devices with one and removes the cabling, desk space, and maintenance overhead that comes with separate equipment.
The T830 has a foldable scanner arm that stows vertically when not in use, keeping the device footprint compact. Built-in wheels allow it to be repositioned within the office without dismounting. It includes its own stand. For small architectural studios and engineering offices without dedicated equipment rooms, the T830 fits where competing MFPs do not.
The integrated CIS scanner captures A1 drawings at up to 600 dpi optical resolution. This is sufficient for archiving as-built drawings, digitising marked-up construction documents, and creating PDF copies of hand-annotated plans. Scanned output saves directly to USB, network folder, or HP Smart App. For practices maintaining a digital document archive, this removes the need for a separate large format scanning service.
The T830's copy function lets you scan and reprint directly from the touchscreen without connecting a computer. Place the original on the scanner bed, select copy, and print the reproduction. For practices reproducing drawings received from external consultants, or reprinting archived paper originals, this is a practical time saver. HP Click handles multi-file batch printing from PDF with one click and automatic page-size detection.
South African AEC practices and engineering firms on working with Graficomp.
We scan five to ten marked-up drawings from site each week and print fresh copies the same day. The T830 eliminated our scan station and plot station. One device, one workflow, one consumable budget.
Archiving as-built drawings used to mean sending them to a scanning bureau. Now we scan everything in-house to PDF and upload to our document server. The 600 dpi resolution on the T830 captures every annotation and dimension cleanly.
Graficomp configured the network folder scanning on installation day. Our team scans directly to the project file server without touching a computer. That setup alone was worth the purchase.
The copy function means we can reproduce a drawing from a consultant immediately, without needing a computer or email. The site team relies on this for re-issuing marked-up versions under deadline.
The rental option made the MFP financially straightforward. Fixed monthly cost, service included, no capital layout. We got the scan and print capability we needed without the capital outlay discussion.
We scan five to ten marked-up drawings from site each week and print fresh copies the same day. The T830 eliminated our scan station and plot station. One device, one workflow, one consumable budget.
Archiving as-built drawings used to mean sending them to a scanning bureau. Now we scan everything in-house to PDF and upload to our document server. The 600 dpi resolution on the T830 captures every annotation and dimension cleanly.
Graficomp configured the network folder scanning on installation day. Our team scans directly to the project file server without touching a computer. That setup alone was worth the purchase.
The copy function means we can reproduce a drawing from a consultant immediately, without needing a computer or email. The site team relies on this for re-issuing marked-up versions under deadline.
The rental option made the MFP financially straightforward. Fixed monthly cost, service included, no capital layout. We got the scan and print capability we needed without the capital outlay discussion.
Practices considering the T830 are typically already outsourcing both printing and scanning. When you account for bureau plot costs and scanning service costs, the break-even calculation arrives faster than for a print-only machine. The T830 is positioned for practices producing 20 to 50 A1 drawings per week who also need large format scanning capability in the same device.
| Weekly A1 Volume | Estimated Bureau Cost (per month) | Estimated Bureau Cost (per year) | Break-Even Guidance |
|---|---|---|---|
| 10 sheets | R600 to R1,000 | R7,200 to R12,000 | Consider the HP DesignJet T230: entry-level A1 plotting at the lowest cost |
| 15 to 20 sheets | R1,200 to R2,000 | R14,400 to R24,000 | HP DesignJet T630 or T650 typically breaks even within 12 months |
| 20 to 50 sheets | R1,200 to R5,000 | R14,400 to R60,000 | T830 MFP: in-house printing and scanning clearly more economical at this volume |
| 100+ sheets | R6,000+ | R72,000+ | HP DesignJet T1600 or T2600 MFP. Bureau outsourcing is not viable at this volume |
These estimates are based on typical bureau rates in Johannesburg and Cape Town as of 2026. Contact Graficomp for a cost comparison based on your actual weekly volume and drawing complexity.
The HP DesignJet T830 works with AutoCAD, Revit, ArchiCAD, Civil 3D, MicroStation, and any application that exports to PDF or sends output through a standard Windows or macOS print driver. No special plugin or add-in is required. The HP-GL/2 print language is natively supported for direct driver output.

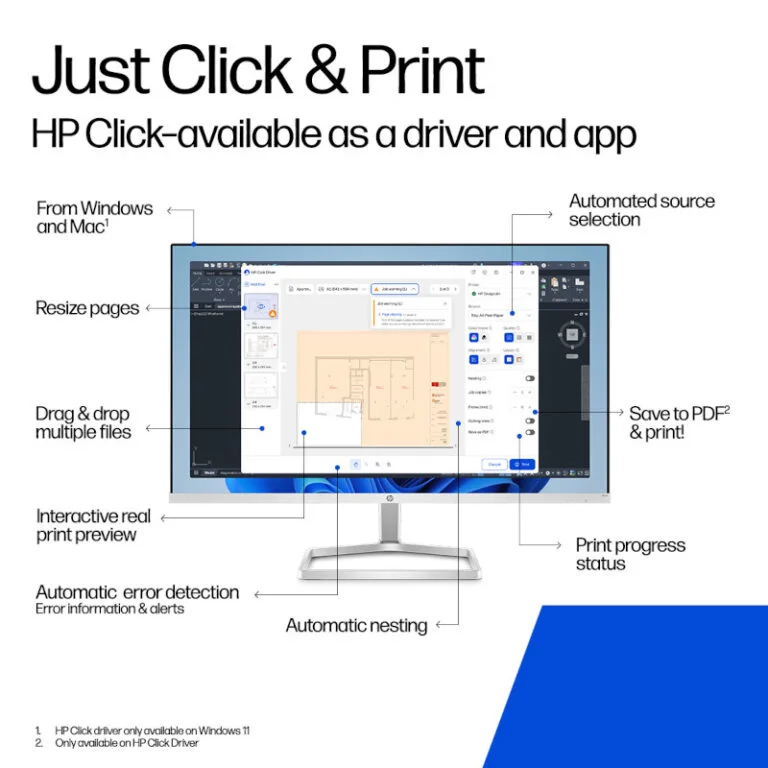

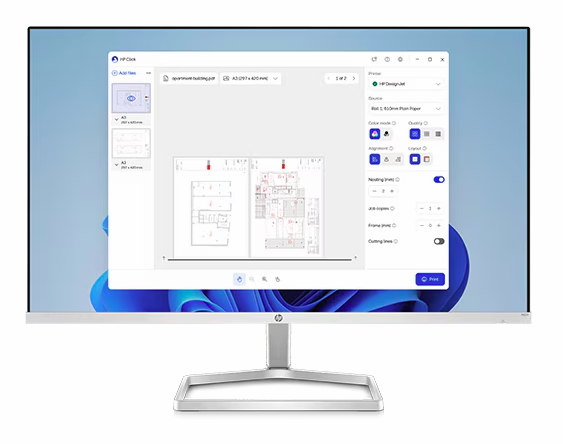

HP Click accepts PDF, JPEG, TIFF, DWF, and HP-GL/2 files. Drop multiple files in and the software detects the page size of each file automatically. One click sends the entire batch to the printer. No manual driver selection. No page-by-page size configuration. For a practice exporting 20 PDFs from AutoCAD for a tender submission, this eliminates the most time-consuming step in the print workflow.
The T830's integrated CIS scanner captures originals up to 914 mm wide at up to 600 dpi optical resolution. From the touchscreen, select Scan to USB, Scan to network folder, or Scan to HP Smart App. Output formats: PDF (single-page or multi-page), TIFF, and JPEG. The Copy function scans and reprints in one step directly from the touchscreen, without a computer.
For practices archiving as-built drawings, the network folder scan destination sends each scan directly to your document management system. Graficomp configures the network destination as part of every T830 MFP installation.
| Connection | Details |
|---|---|
| Gigabit Ethernet | 1000Base-T. Recommended for offices with multiple users sharing the device on a network. |
| Wi-Fi | 802.11 b/g/n. Wireless printing and scanning from desktops and laptops without cabling. |
| Hi-Speed USB 2.0 | Direct connection for single-user printing setups. |
| USB Host Port | Print from USB drives. Scan directly to USB. Useful for drawing sets received on USB from external consultants. |
| HP Smart App | Remote print job submission, scan receipt, queue management, and device status from any device. |
The HP DesignJet T830 achieves ±0.1% line accuracy on A0 drawings in Best or Normal mode. For AEC buyers, line accuracy is the non-negotiable quality metric. Construction dimensions, site plans, and engineering details print at the precision the drawing was authored at. The minimum reproducible line width is 0.02 mm.

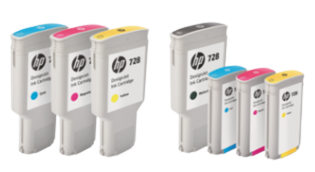

The T830 uses the HP 728 ink system: Cyan, Magenta, Yellow, and Matte Black. Matte Black delivers sharp, high-contrast line work on CAD drawings printed on bond or coated paper. The colour inks produce a wide gamut for presentation renders and colour-coded engineering plans.
Colour cartridges (Cyan, Magenta, Yellow) are available in 130 ml (F9J65A/F9J66A/F9J67A) and 300 ml (F9K15A/F9K16A/F9K17A) sizes. Matte Black is available in 300 ml only (F9J68A). Higher-volume practices should use the 300 ml Matte Black given black is the dominant colour in technical CAD line work.
The integrated CIS scanner delivers up to 600 dpi optical resolution across the full 914 mm scan width. This resolution is sufficient for:
| Media Type | Specification |
|---|---|
| Roll feed | 279 to 914 mm roll width. Automatic horizontal cutter. |
| Manual sheet feed | Up to 914 x 1897 mm (A0+). 60 to 280 g/m². |
| Media thickness | Up to 0.3 mm. |
The T830 handles roll media for A1 and A0 drawings and accepts cut sheets via the manual feed slot. For practices printing A4 documents alongside A1 drawings in the same session, feed the cut sheets manually. HP Click queues mixed-format jobs and routes each page to the correct source.
The HP DesignJet T830 MFP is ENERGY STAR certified. For AEC practices responding to sustainability-rated tenders, ENERGY STAR certification is a procurement qualifier. FSC-certified papers and recyclable HP media are available through the HP large format materials portfolio.
ENERGY STAR Certified
Ink Efficiency
Source: HP DesignJet T830 36-in MFP product datasheet (HP part number F9A30D). All specifications metric primary, imperial in brackets. Verify current specifications from HP's published datasheet before purchase.
| Specification | Value |
|---|---|
| Print Technology | HP Thermal Inkjet |
| Ink System | HP 728 Inks: Cyan, Magenta, Yellow, Matte Black |
| Ink Cartridges | Cyan/Magenta/Yellow: 130 ml (F9J65A/F9J66A/F9J67A) or 300 ml (F9K15A/F9K16A/F9K17A). Matte Black: 300 ml (F9J68A). |
| Max Print Width | 914 mm (36 inches) |
| Print Speed (A1) | Approximately 25 seconds per A1/D page in fast mode |
| Print Resolution | Up to 2400 x 1200 optimised dpi |
| Line Accuracy | ±0.1% |
| Minimum Line Width | 0.02 mm |
| Scanner Type | Integrated CIS (Contact Image Sensor) |
| Scan Resolution | Up to 600 dpi optical |
| Max Scan Width | 914 mm (36 inches) |
| Scan Destinations | USB drive, network folder, HP Smart App |
| Scan File Formats | PDF (single and multi-page), TIFF, JPEG |
| Copy Function | Direct scan-to-print from touchscreen. No computer required. |
| Roll Size Supported | 279 to 914 mm |
| Max Substrate Thickness | 0.3 mm |
| Sheet Feed (manual) | Up to 914 x 1897 mm (60 to 280 g/m²) |
| Media Handling | Roll feed, manual sheet feed, automatic horizontal cutter |
| RIP / Print Software | HP Click (included; no RIP required for CAD plotting) |
| Print Languages | HP-GL/2, HP-RTL, CALS G4, JPEG, URF |
| Drivers | Raster driver for Windows and macOS |
| Connectivity | Gigabit Ethernet (1000Base-T), Wi-Fi 802.11 b/g/n, Hi-Speed USB 2.0, USB Host |
| Remote Management | HP Smart App (mobile and desktop) |
| Memory | 1 GB |
| Hard Disk | None |
| Control Panel | 4.3-inch colour touchscreen |
| Power Requirements | 220-240 V (±10%), 50/60 Hz (±3 Hz) |
| Operating Temperature | 5 to 40 °C |
| Operating Humidity | 20 to 80% RH |
| Mobility | Built-in wheels. Foldable scanner arm for compact storage and repositioning. |
| Environmental Certifications | ENERGY STAR, WEEE, EU RoHS |
| Warranty | 2-year limited hardware warranty |
| HP Part Number (36-in) | F9A30D |
Graficomp does not sell you an MFP and leave you to configure the scanning. Every HP DesignJet T830 purchase includes on-site installation, driver and network configuration, scan destination setup, and operator training. Graficomp's engineering team holds an estimated 40 to 50 years of combined hands-on experience with HP DesignJet and Latex printer ranges.
HP Amplify is HP's global partner programme. Specialist status requires demonstrated technical competency, customer satisfaction metrics, and a minimum volume of certified deployments. Graficomp holds designations across two solution areas plus Synergy Commercial Partner status.
When you buy an HP DesignJet T830 MFP through Graficomp, you are buying through a partner HP recognises as qualified to deliver the full solution: hardware, installation, scan destination configuration, training, and ongoing service.
Graficomp installs and services HP DesignJet MFPs across South Africa. HP delivers equipment free to any SA location.
Not every practice needs an MFP. Choose the model that matches your actual workflow requirements. The routing table below routes decisions honestly.
| Your Situation | Recommended Model |
|---|---|
| Small practice, print-only, lowest entry cost, fewer than 20 A1 per week | HP DesignJet T630 |
| Small to mid practice, print-only, 20 to 50 A1 per week, automatic sheet feeder | HP DesignJet T650 |
| Small to mid practice, needs print and scan in one compact device, no workgroup requirement | HP DesignJet T830 A1 MFP (this page) |
| Growing workgroup, 50+ A1 per day, print-only, multiple concurrent users, higher duty cycle | HP DesignJet T1600 |
| Workgroup, needs scanning, copying, and enterprise security (LDAP, role-based access) | HP DesignJet T2600 MFP |
| Need to print signage, vehicle graphics, or wide-format production graphics | HP Latex 630 (separate product category) |
The HP DesignJet T650 delivers the same print quality with an automatic sheet feeder at a lower purchase cost than the T830 MFP. For practices that will not use the scanner, the T650 is the more economical choice.
The HP DesignJet T2600 MFP is designed for workgroup environments with enterprise security controls. It handles higher duty cycles, concurrent users, and compliance requirements the T830 MFP is not designed for.
Answers written to stand alone, optimised for AI-assisted search and passage retrieval.
The T830 scans any flat, flexible document up to 914 mm (36 inches) wide: A1 and A0 construction drawings, engineering plans, site surveys, as-built documentation, marked-up tender drawings, and paper originals of any format up to the maximum scan width. Output is saved as PDF (single or multi-page), TIFF, or JPEG. Rigid materials and bound documents cannot be scanned on a flatbed-style scanner; the T830 uses a slot-fed CIS scanner for flexible sheet originals only.
The T830 scans at up to 600 dpi optical resolution. For as-built drawings, 600 dpi captures all dimension annotations, revision clouds, and handwritten notes at full legibility. For archival purposes where drawings may be reproduced at larger scales in future, 600 dpi is the appropriate resolution. For standard copy reproduction at the original scale, 300 dpi is generally sufficient. The T830's 600 dpi maximum is appropriate for professional AEC document management workflows.
The T830 saves scanned files to three destinations: USB drive (inserted into the USB host port on the device), network folder (configured during installation to point to a file server, shared drive, or document management system), and HP Smart App (on a connected mobile or desktop device). Graficomp configures the network folder destination during on-site installation so your team can scan directly to your project server from day one.
Yes. The T830 has a copy function accessible directly from its 4.3-inch touchscreen. Place the original on the scanner feed slot, select Copy from the menu, choose the number of copies and any scale adjustments, and the device scans and prints the reproduction without requiring a connected computer. This is useful for reproducing drawings received from external consultants or reprinting archived paper originals on demand.
Buying a separate plotter and scanner gives you higher specialisation in each function but at double the cost, double the consumables overhead, double the desk or floor space, and two devices to maintain. The T830 MFP trades a small reduction in peak print speed and scan throughput for the convenience of a single device, single service contract, and single software workflow. For small practices printing 20 to 50 A1 sheets per week and scanning intermittently, the T830 MFP is almost always the more practical and economical choice. For practices with very high print volumes (50+ A1 per day) who also need high-volume scanning, separate workgroup devices may be appropriate. Contact Graficomp to discuss your specific volumes.
For most practices, in-house plotting becomes economical at around 20 A1 drawings per week. At bureau rates of R15 to R25 per A1 sheet, a practice producing 20 sheets per week spends R1,200 to R2,000 per month on plots alone. Add large format scanning costs (typically R20 to R40 per A1 scan at bureau rates) and the break-even calculation arrives faster for an MFP than for a print-only plotter. Contact Graficomp for a combined cost comparison based on your actual weekly print and scan volumes.
No special plugin or add-in is required. The T830 works with any application that outputs to PDF or uses a standard Windows or macOS print driver, including AutoCAD, Revit, ArchiCAD, Civil 3D, MicroStation, and Bluebeam Revu. For batch PDF plotting, HP Click software accepts multiple files and prints them in one click with automatic page-size detection. The HP-GL/2 print language is natively supported for direct driver output.
Yes. HP provides a raster driver for macOS. HP Click is available for macOS for batch PDF printing. The HP Smart App is available on Mac for remote job submission, scan receipt, and device management. This is relevant for the significant number of architecture and design practices running macOS.
Both are large format MFPs with integrated scanning. The key differences: the T830 is a compact, single-user MFP designed for small practices. It has built-in wheels, a foldable scanner arm, and is designed to fit in a small office without dedicated equipment space. The HP DesignJet T2600 MFP is a workgroup MFP with higher sustained print throughput, a larger ink system, and an enterprise security stack (LDAP, role-based access, secure erase, HP Wolf Pro Security). The T2600 MFP is the correct choice for organisations with IT security requirements, concurrent multi-user workflows, or compliance obligations around document access.
Graficomp provides on-site installation for every HP DesignJet MFP purchase. This includes physical setup, network configuration (Ethernet or Wi-Fi), scan destination setup (network folder, USB), HP Click software installation, driver configuration for your operating system, and a short operator training session covering print, scan, copy, and consumables. For the T830 MFP specifically, configuring the network scan folder correctly requires access to your network. Graficomp coordinates this with your IT contact or office manager during installation.
The T830 uses HP 728 ink cartridges: Cyan, Magenta, Yellow, and Matte Black. Colour cartridges are available in 130 ml (F9J65A/F9J66A/F9J67A) and 300 ml (F9K15A/F9K16A/F9K17A) sizes. Matte Black is available in 300 ml only (F9J68A). Graficomp supplies HP 728 consumables and can advise on the correct cartridge mix for your typical print volumes and content types.
Yes. Graficomp offers 36, 48, and 60-month rental structures for HP DesignJet MFPs. The monthly cost covers the hardware, HP-certified installation including scan configuration, and access to Graficomp's HP ASDP service. Rental converts a capital expenditure into a predictable operating cost, which is the preferred structure for many practices managing project-based cash flow. Contact Graficomp for a rental quote.
