Lower Ink Cost Than UV
Water-based HP Latex inks cost less per ml than UV-curable alternatives. For a production operation printing consistent volume, the ink cost difference over the life of the machine is a material financial advantage.
Graficomp · HP Amplify Commercial Specialist ·
Johannesburg · Cape Town · Durban |
011 792 1348
HP Amplify Commercial Specialist · Large Format Design Solutions
|
HP Amplify Commercial Specialist · Large Format Production & Textile Solutions
|
HP Amplify Synergy Commercial Partner

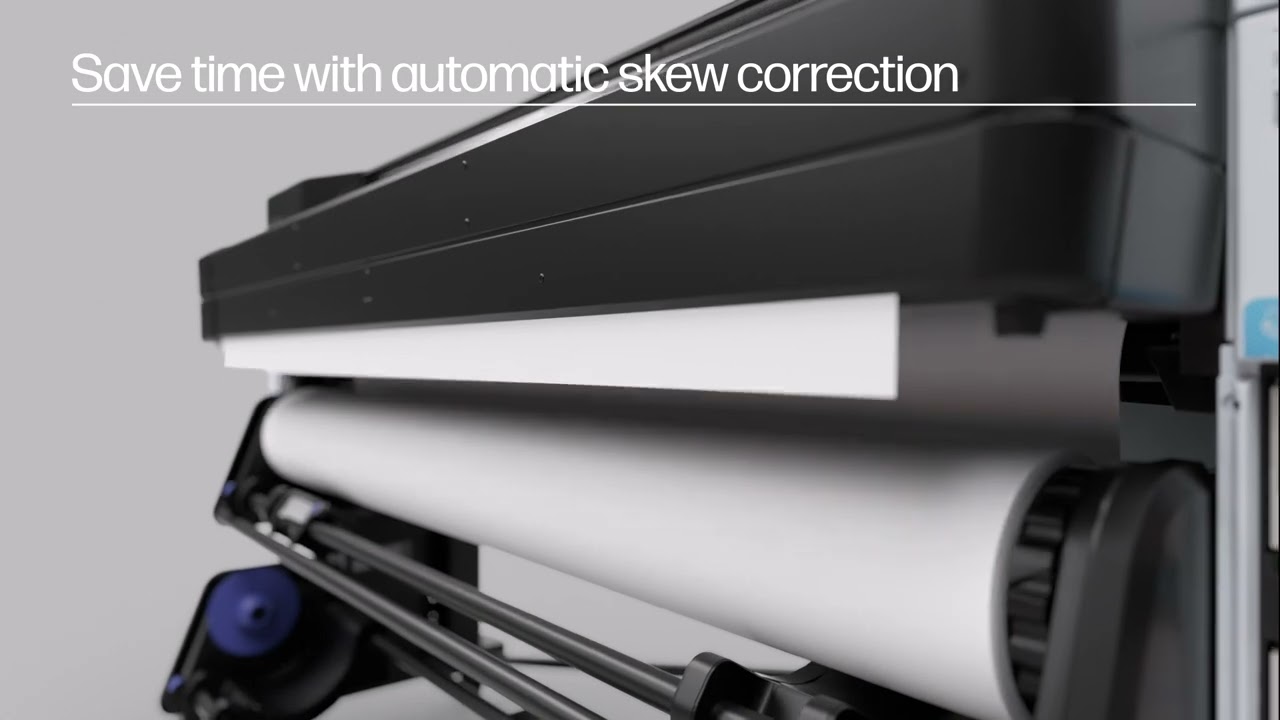

HP Latex 630 Printer
The HP Latex 630 is a 64-inch (1,630 mm) roll-to-roll large format printer designed for signage, display graphics, vehicle graphics, textile applications, and interior decoration. It produces up to 14 m²/hr (151 ft²/hr) in standard 6-pass mode and up to 35 m²/hr (377 ft²/hr) in 2-pass draft mode using water-based HP 832 Latex inks in 1-litre cartridges. Maximum roll weight is 42 kg. Prints exit dry and ready for immediate lamination, with no outgassing wait. The 630 carries UL GREENGUARD Gold, UL ECOLOGO, and EPEAT certifications, enabling access to odour-sensitive indoor environments without special ventilation. Sold and serviced in South Africa by Graficomp, an HP Amplify Commercial Specialist and certified HP ASDP service partner.
HP Latex 630 Printer producing retail signage with water-based HP 832 Latex inks on self-adhesive vinyl
64"
Max media width (1,630 mm). Handles rolls from 18 to 64 inches.
35 m²/hr
Max draft speed (2-pass). Standard 6-pass production: 14 m²/hr.
42 kg
Max roll weight. Fewer changeovers on longer runs.
Why HP Latex Outperforms on Total Operating Cost
Spec sheets show headline speeds. These are the operational advantages that determine your actual cost per square metre over three years of production.
Textile and Fabric Capability
HP Latex prints directly on tissue paper, pure cotton, coated fabrics, canvas, and synthetic textiles when used with a liner. Textile and soft-signage applications are a growing revenue stream that UV and most eco-solvent systems cannot serve from the same machine.
User-Replaceable Printheads
Head strikes happen. On HP Latex, replacing a printhead takes under 10 minutes and requires no engineer on site. You order the head, install it yourself, and you are back in production the same day. On many competing platforms, a head strike means waiting for a technician and potentially days of downtime.
Parts In-Country Within 3 Days
HP ships parts by air freight only — no sea freight. If a part is not already in South Africa, HP will fly it in within three business days. Most units and consumables are held in local SA stock. HP also delivers equipment free to any location in South Africa, saving thousands of rand for businesses in outlying areas.
What Our Clients Say
South African print businesses on working with Graficomp.
★★★★★
"
The installation team was on-site the same week. They didn't leave until we were producing at quality. That level of service is rare in this industry — most suppliers drop the machine and disappear.
★★★★★
"
We moved from an eco-solvent machine and the difference in throughput was immediate. No outgassing wait means we can laminate same-day. Our turnaround on retail jobs halved.
★★★★★
"
When we had a printhead issue, Graficomp had the replacement part on-site within two business days. We were back in production before the end of the week. That's the HP parts promise in action.
★★★★★
"
The rental structure made sense for our cash flow. Fixed monthly cost, HP-certified service included. We went from capital expenditure avoidance to owning a machine we couldn't have justified outright.
★★★★★
"
We needed access to textile and fabric substrates without buying a second machine. The HP Latex 630 handles both vinyl production and soft-signage from the same platform. That versatility changed our offering completely.
★★★★★
"
The installation team was on-site the same week. They didn't leave until we were producing at quality. That level of service is rare in this industry — most suppliers drop the machine and disappear.
★★★★★
"
We moved from an eco-solvent machine and the difference in throughput was immediate. No outgassing wait means we can laminate same-day. Our turnaround on retail jobs halved.
★★★★★
"
When we had a printhead issue, Graficomp had the replacement part on-site within two business days. We were back in production before the end of the week. That's the HP parts promise in action.
★★★★★
"
The rental structure made sense for our cash flow. Fixed monthly cost, HP-certified service included. We went from capital expenditure avoidance to owning a machine we couldn't have justified outright.
★★★★★
"
We needed access to textile and fabric substrates without buying a second machine. The HP Latex 630 handles both vinyl production and soft-signage from the same platform. That versatility changed our offering completely.
Output, Speed, and Daily Capacity
The 630 is the natural upgrade from eco-solvent or older latex technology. You gain access to odour-sensitive indoor environments, eliminate the outgassing delay before lamination, and open décor and wallcovering applications without ventilation investment.
| Print Mode | Speed (m²/hr) | Speed (ft²/hr) | Pass Count | Typical Use |
|---|---|---|---|---|
| Max Speed | ~35 | 377 | 2-pass | Event banners, short-run proofing |
| Fast | ~18 | 194 | 4-pass | General outdoor banners, economy PVC |
| Standard everyday | ~14 | 151 | 6-pass | Everyday production: signage, POS, vinyl |
| Quality | ~11 | 118 | 8-pass | Photography, fine art, colour-critical brand work |
| High Saturation | ~7.7 | 83 | 12-pass | Backlit film, high-ink-density display graphics |
| Backlits and Textiles | ~6.6 | 71 | 14-pass | Light-box film, textile and fabric media |
Eco-solvent headline speeds exclude outgassing time. Eco-solvent prints typically
require 24 to 48 hours of off-gassing before lamination. HP Latex prints are finishing-ready
immediately. For shops laminating same-day, the effective throughput difference between the 630
and competitive eco-solvent printers is smaller than headline comparisons suggest.
Media Handling
The 630 accepts rolls from 18 to 64 inches wide (23 to 64 inches with full support), with a maximum roll weight of 42 kg (92.6 lb) and maximum roll diameter of 249 mm (9.8 in). An automatic horizontal cutter handles vinyl, banner, canvas, and paper-based media. A take-up reel is included for unattended production runs.
If your operation regularly runs rolls heavier than 42 kg, or needs automated double-sided printing for flags and banners, the HP Latex 730 raises the limit to 55 kg and adds both capabilities.
Textile and Fabric Printing
HP Latex inks adhere directly to a wide range of fabric and textile substrates when used with a liner — including canvas, coated polyester, backlit textile, pure cotton, tissue paper, and synthetic blends. Textile printing for soft-signage, interior display, exhibition backdrops, and custom apparel is a growing application category that UV and most eco-solvent platforms cannot serve without additional equipment or consumable cost.
For textile-intensive operations requiring production at scale, ask Graficomp about the HP Latex Production and Textile Solutions pathway, which includes dedicated RIP profiles and media guidance for fabric applications.
Colour Control, Ink Chemistry, and Environmental Credentials
Colour Consistency and ICC Profiling
The HP Latex 630 does not include an embedded spectrophotometer. Third-party spectrophotometers, including the X-Rite i1Pro and Barbieri series, are compatible for in-house ICC profiling. The 630 ships with HP SAi Flexi RIP Basic, which supports manual ICC profile loading.
For production teams who require in-house ICC profile creation and automated colour verification across repeat brand rollouts, the HP Latex 730 and HP Latex 830 include an HP Embedded Spectrophotometer. That is the primary technical differentiator between the 630 and the 730 — if automated profiling is a workflow requirement, start there.
Print-to-print repeatability on the 630 is rated at 95% of colours within 3 dE2000, measured at 12-pass mode on vinyl media.
Ink Chemistry and Working Environment
HP 832 Latex inks are water-based and contain no Hazardous Air Pollutants. No special ventilation is required for the ink chemistry itself. When printing on PVC-based vinyl or banner media, mild off-gassing can occur from the media plasticisers during the curing stage. This is from the substrate, not the ink. For completely odour-neutral output, HP PVC-free substrates, wallcoverings, and paper-based media produce no detectable odour.
UL GREENGUARD Gold
UL ECOLOGO
EPEAT
ENERGY STAR
✅
RoHS Compliant
🔬
REACH Compliant
HP 832 ink cartridges use a cardboard-based housing rather than plastic, reducing consumable plastic waste. Used cartridges are accepted for free recycling through the HP Planet Partners programme.
White Ink Variant: HP Latex 630W
The HP Latex 630W adds a white ink channel for printing on clear and metallic substrates, window graphics with opaque white backgrounds, backlit displays requiring a white underflood, and dark-substrate decals where colour fidelity requires a white base layer.
The 630W uses automatic white ink recirculation to keep the ink in suspension during idle periods, a significant maintenance advantage over implementations requiring manual purging. For operations running white ink intermittently, this reduces waste and maintenance time. If your production does not require white ink, the base HP Latex 630 is the correct choice.
Outdoor Durability
HP 832 Latex inks achieve a 7-year outdoor durability rating on laminated 3M cast vinyl under 3M MCS Warranty specifications. Unlaminated prints on standard calendered vinyl are rated for up to 3 years outdoors, comparable to eco-solvent on the same substrates without lamination. For fleet graphics and long-duration installations, lamination is recommended to achieve the full rating.
Mac users: confirm your RIP before purchasing. HP SAi Flexi RIP Basic, included
with the 630, runs on Windows only. Mac-based studios and design practices require a third-party
RIP such as Caldera. Graficomp can advise on the correct RIP configuration for your workflow
before purchase. Contact us at
sales@graficomp.co.za.
Full Specifications
| Specification | Value |
|---|---|
| Print Technology | HP Latex Printing Technologies (thermal inkjet) |
| Ink System | Water-based HP 832 Latex Inks — 1-litre cartridges |
| Ink Cartridges | 8 cartridges: Black, Cyan, Light Cyan, Magenta, Light Magenta, Yellow, HP Latex Optimizer, HP Latex Overcoat |
| Max Media Width | 1,630 mm (64 in) |
| Standard Speed (6-pass) | ~14 m²/hr (151 ft²/hr) |
| Printheads | 5 (user-replaceable): Cyan/Black · Magenta/Yellow · Light Cyan/Light Magenta · Optimizer · Overcoat |
| Roll Size Supported | 18–64 in (23–64 in with full support) |
| Max Roll Weight | 42 kg (92.6 lb) |
| Max Roll Diameter | 249 mm (9.8 in) |
| Max Substrate Thickness | 0.5 mm (19.7 mil) |
| Max Draft Speed (2-pass) | ~35 m²/hr (377 ft²/hr) |
| Quality Speed (8-pass) | ~11 m²/hr (118 ft²/hr) |
| High Saturation (12-pass) | ~7.7 m²/hr (83 ft²/hr) |
| Backlits and Textiles (14-pass) | ~6.6 m²/hr (71 ft²/hr) |
| Max Print Resolution | 1,200 × 1,200 dpi |
| Print-to-Print Repeatability | 95% of colours within 3 dE2000 (12-pass, vinyl media) |
| Spectrophotometer | Not included — third-party spectrophotometers compatible. Embedded spectrophotometer available on HP Latex 730 and HP Latex 830. |
| Double-Sided Printing | Not supported (automated double-sided available on HP Latex 730 and 830) |
| Media Types | Self-adhesive vinyl, banners, films, papers, wallcoverings, canvas, synthetics (fabrics, mesh, and porous materials require a liner) |
| Media Handling | Roll feed, take-up reel, automatic horizontal cutter (vinyl, banner, canvas, paper-based media) |
| RIP Software Included | HP SAi Flexi RIP Basic (Windows only) |
| Connectivity | Gigabit Ethernet (1000Base-T) |
| Power Requirements | 200–240 V (±10%), single-phase, two power cords (5 A printer cord + 12 A curing cord), 50/60 Hz |
| Power Consumption | 1.4–2.1 kW average printing (2.9 kW peak) · 85 W ready · under 2.5 W sleep |
| Operating Temperature | 15–30 °C (59–86 °F) |
| Operating Humidity | 20–80% RH (non-condensing) |
| Printer Dimensions (W x D x H) | 2,602 × 843 × 1,405 mm (102.5 × 33.2 × 55.3 in) |
| Operating Area Required | 2,794 × 2,101 mm (110 × 82.7 in) |
| Printer Weight | 230 kg (507 lb) |
| Sound Pressure (Printing) | 55 dB(A) |
| Environmental Certifications | UL GREENGUARD Gold · UL ECOLOGO · EPEAT · ENERGY STAR · RoHS · REACH · CE |
| Warranty | 1-year limited hardware warranty (extended service plans available) |
| HP Part Number | 171S2A |
Why Graficomp
Graficomp is not a box-mover. Every HP Latex 630 purchase includes commissioning by a certified HP engineer and operator training before the machine enters production. We carry 40 to 50 years of combined engineering experience on the HP DesignJet and Latex ranges.
- Signage and Graphics
- Vehicle Graphics and Wraps
- Exhibition and Display
- Interior Décor and Textiles
- Commercial Print
- Architecture and Engineering
- Franchise Retail Display
HP Amplify Partner Program
HP Amplify Commercial Specialist
HP Amplify is HP's global partner programme for authorised resellers and service organisations. Specialist status is not automatic — it requires demonstrated technical competency, customer satisfaction metrics, and a minimum volume of certified deployments. Graficomp holds Commercial Specialist designations across two distinct solution areas within the Large Format portfolio, as well as Synergy Commercial Partner status.
When you buy an HP Latex 630 through Graficomp, you are buying through a partner that HP recognises as qualified to deliver the full solution: hardware, installation, training, and ongoing service. That is what HP Amplify Specialist status means in practice.
Large Format Design Solutions Specialist
Certified competency in design-led large format applications including
interior décor, fine art, and AEC print workflows.
Large Format Production and Textile Solutions Specialist
Certified competency in high-volume production, textile printing,
and sustainable large format print workflows.
Synergy Commercial Partner
HP Amplify Synergy designation reflecting cross-portfolio capability,
customer experience standards, and consistent solution delivery across
the HP portfolio.
Local Service Coverage
Johannesburg — Head Office
Midrand / Kyalami
Pretoria / Centurion
Krugersdorp / West Rand
Isando / Kempton Park
Jet Park / Boksburg
Meadowdale / Germiston
Longmeadow / Linbro Park
Cape Town — Tokai
Durban
Stellenbosch / Technopark
Paarl · Somerset West · George
HP delivers equipment free to any location in South Africa, including outlying areas where freight costs from other suppliers can run into thousands of rand. Graficomp's engineers travel to site for installation across all regions.
Is the HP Latex 630 the Right Machine for You?
Decisive routing. No hedging. If the 630 is not the right answer for your operation, these conditions will tell you which machine is.
Choose the HP Latex 630 if:
- You are moving off eco-solvent or an older latex model and need a clear upgrade without overspecifying
- Daily output is moderate — you are not consistently pushing more than 15 to 20 m² per day at standard quality
- You do not require automated ICC profiling in-house — third-party spectrophotometers are compatible
- You want access to indoor, décor, and textile applications without ventilation investment
- You need a separate 64" cutter — the 630 is the model Graficomp pairs with the cutter package
Upgrade to the HP Latex 730 if:
- Daily production regularly exceeds 20 m² and changeover time on 42 kg rolls creates friction
- You manage repeat brand clients requiring consistent colour verification across print runs — the 730 includes an HP Embedded Spectrophotometer
- You need automated double-sided printing for flags, banners, or double-sided POS
- Your roll stock regularly exceeds 42 kg — the 730 handles up to 55 kg
Consider eco-solvent if:
- Integrated print-and-cut is your primary workflow requirement
Why a separate cutter is often the better decision:
Integrated print-and-cut machines link two hardware components in a single unit. When the printer fails, the cutter fails with it. A separate cutter operates completely independently — you can cut while you print, send cutting jobs from any source, and if the printer goes down the cutter keeps running.
Cutters also outlast printing hardware significantly. The mechanical precision of a dedicated cutting plotter, and its ability to handle a broader range of media thicknesses and contour cutting tolerances, exceeds what an integrated print-and-cut unit can deliver.
The 64" cutter Graficomp pairs with the 630 series retails independently for north of R100,000. Through Graficomp's current package, you get it alongside the printer at a significantly reduced cost. You are not compromising on cutting capability — you are getting a better cutter than most integrated alternatives.
| Buyer condition | Recommended model |
|---|---|
| Moving up from eco-solvent; moderate daily volume; no spectrophotometer required | HP Latex 630 |
| Need white ink for window graphics, backlit, or dark substrates | HP Latex 630W |
| Daily volume above 20 m²; repeat brand clients; rolls over 42 kg; need embedded spectrophotometer | HP Latex 730 |
| High-volume operation; speed parity with eco-solvent required (up to 36 m²/hr standard) | HP Latex 830 |
| Need to print on rigid substrates (foamboard, ACM, acrylic) as well as roll media | HP Latex R530 (separate category) |
HP Latex 630 — Frequently Asked Questions
What is the maximum roll size and weight the HP Latex 630 accepts?
The HP Latex 630 accepts rolls up to 249 mm (9.8 in) in diameter and up to 42 kg (92.6 lb) in weight. Roll widths from 18 to 64 inches are supported, with full platen support for rolls 23 inches and wider. If your rolls regularly exceed 42 kg, the HP Latex 730 raises the maximum to 55 kg.
Can I monitor the HP Latex 630 remotely?
Yes. The HP Latex 630 integrates with the HP PrintOS platform, which provides real-time production monitoring, job status, and printer health data from any connected device via browser. PrintOS also includes HP PrintBeat analytics and HP Learn training resources. Access is included with the printer at no additional cost for core features.
Does the HP Latex 630 require special ventilation?
No. HP 832 Latex inks are water-based and contain no Hazardous Air Pollutants. No special ventilation is required for the ink chemistry. When printing on PVC-based vinyl or banner media, mild off-gassing can occur from the media plasticisers during the curing stage — this is from the substrate, not the ink. HP PVC-free substrates, wallcoverings, and paper-based stocks produce no detectable odour. The 630 is rated neutral for hedonic tone in independent odour testing by Odournet under VDI Guideline 3882.
How does HP Latex outdoor durability compare to eco-solvent?
HP 832 Latex inks achieve a 7-year outdoor durability rating on laminated 3M cast vinyl under 3M MCS Warranty specifications. Unlaminated output on standard calendered vinyl is rated up to 3 years outdoors, comparable to eco-solvent on the same substrates without lamination. For high-traffic indoor applications, HP Latex output does not require a seal coat — an advantage over eco-solvent in environments where lamination is impractical.
What happens if the printer sits unused for two or three weeks?
The HP Latex 630 performs automatic maintenance routines to preserve printhead condition during idle periods. Water-based HP Latex inks do not dry and harden in the printheads during normal idle cycles the way eco-solvent inks can. Short idle periods of one to three weeks are handled automatically. For extended shutdowns beyond a month, contact Graficomp for the correct storage procedure.
What RIP software is included, and does it run on Mac?
HP SAi Flexi RIP Basic is included in the box and runs on Windows only. Mac-based workflows require a third-party RIP such as Caldera, ONYX, or Ergosoft. Graficomp can advise on the correct RIP configuration before purchase. Contact us at sales@graficomp.co.za or call 011 792 1348.
Does the HP Latex 630 include a spectrophotometer for ICC profiling?
No. The HP Latex 630 does not include an embedded spectrophotometer. ICC profiles can be loaded manually via the RIP software, and third-party spectrophotometers are compatible for in-house profiling.
For production teams managing repeat brand clients requiring automated ICC profile creation and colour verification, the HP Latex 730 and HP Latex 830 include an HP Embedded Spectrophotometer. That is the primary technical justification for stepping up from the 630.
What happens when I need to replace a printhead?
HP Latex printheads are user-replaceable. No engineer is required on site. Head strikes happen in print production — on HP Latex, you order the replacement head, install it yourself in under 10 minutes, and you are back in production. On many competing platforms, a head strike means waiting for a technician visit, potentially losing days of production. The 630 includes 5 user-replaceable printheads covering all ink channels.
Can the HP Latex 630 print on textiles and fabric?
Yes. HP Latex inks print on coated polyester, backlit textile, canvas, synthetic blends, and natural fibres including pure cotton and tissue paper when used with a liner. Textile and soft-signage is a growing application area for Latex — including exhibition backdrops, interior display fabric, flags, and custom apparel. This is an application that most eco-solvent platforms cannot serve from the same machine.
Talk to a Graficomp HP Latex Specialist
Not sure the 630 is the right model? Tell us your production mix and we will tell you which machine fits — without overselling.
On-site installation and operator training included.
HP ASDP certified service — in and out of warranty.
Rental agreements: 36, 48, or 60 months available.
Consumables, media, and RIP software sourced through us.
Free delivery anywhere in South Africa by HP.
